Filter Solution

Our ultra-low differential pressure (D/P) technology ensures superior airflow without compromising efficiency. Meltblown cores are intricately woven to capture particles as small as 0.3μm, providing exceptional filtration.

Filter Type	Efficiency	D/P (Other)	D/P (HISO)
H11	95%	15 Pa	8Pa / 11 Pa
H12	99.50%	25 Pa	13Pa / 18 Pa
H13	99.97%	30 Pa	22Pa / 25 Pa
H14	99.99%	45 Pa	30Pa / 35Pa
Standard  EN 143, NaCl, 0.3um, @5.33 cm/s

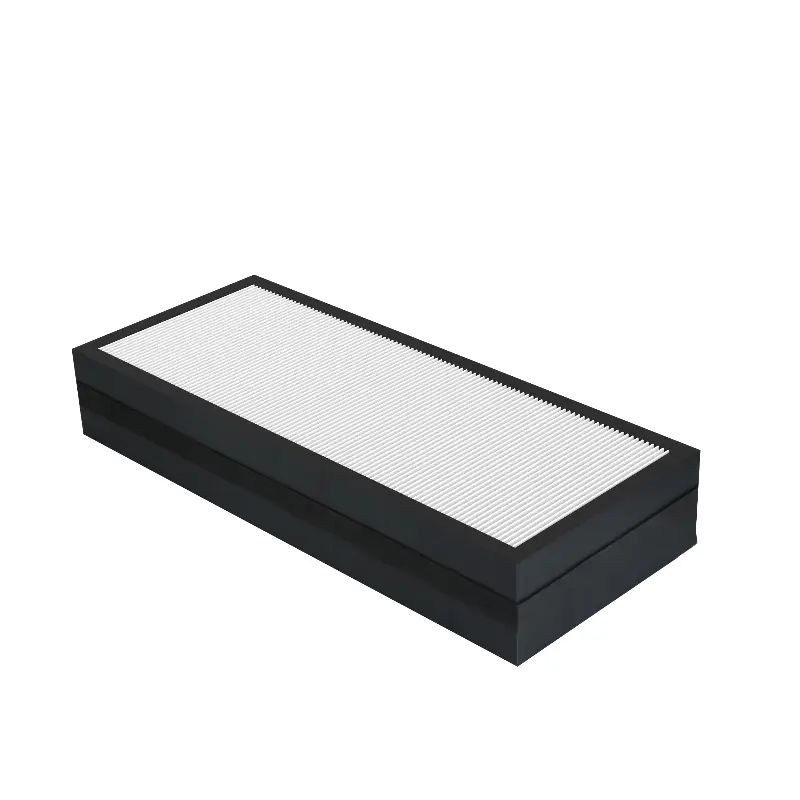

Advanced HEPA Air Filtration

HEPA filters capture a wide range of particles as small as 0.3 microns, removing dust, pollen, mold spores, and allergens from the air to ensure that you can breathe safely.

Effective Harmful Gas Neutralization

Special design to neutralizes harmful gases, odors, VOCs, smoke, and domestic fumes, ensuring your air is clean and odor-free.

Designed with cutting-edge Flame Spread Rating Class Ⅱ materials.

Using advanced material engineering, our filters form athermal barrier when exposed to high temperatures,effectively blocking flames and heat.

This innovative material offers high-efficiency airfiltration and is also at the forefront in fire safetyperformance.

Plasma ions are generated by applying a high-voltage electric field that separates positive and negative charges in the air. These ions form a dense cloud of charged particles, known as ion clusters, which actively target and destroy harmful substances such as viruses, bacteria, and pollutants. The ions penetrate cell membranes and proteins, causing structural breakdown and rapid deactivation or decomposition.

Key Functions:
1. Virus Elimination
2. Bacteria Elimination
3. Gas Pollutant Decomposition
4. PM2.5/PM10 Reduction

• UVC Emission: Matrix-array LED-UVC diodes produce short-wave UV (100–280 nm).

• DNA/RNA Disruption: The light damages microbial DNA or RNA, stopping growth and replication.

• Photocatalytic Oxidation: UV energizes the catalyst, generating electric charges that release oxygen and hydroxyl radicals.

• Cell Membrane Degradation: These radicals rupture bacterial and viral membranes, destroying their genetic material and proteins.

• ESP (Electrostatic Precipitator) – A high-voltage field charges and captures particles down to 0.01 µm and inactivates airborne microbes, but it also generates ozone.

• CC (Coupled Catalyst) – A room-temperature catalyst instantly converts any residual O₃ to O₂ and oxidises common VOCs with virtually no pressure loss or extra power draw.

• ESPCC – By positioning the CC stage directly after the ESP, unites ultrafine particle removal and microbial kill with ozone and VOC elimination in one compact, energy-efficient module that delivers truly clean indoor air.
