Commercial Ceiling-Mounted Air Purifier Platform
HisoAir develops fixed ceiling-mounted air purification systems for offices, schools, clinics, and other continuously occupied environments, combining high-efficiency filtration with out-of-reach safety.
Explore PlatformRequest Project Evaluation

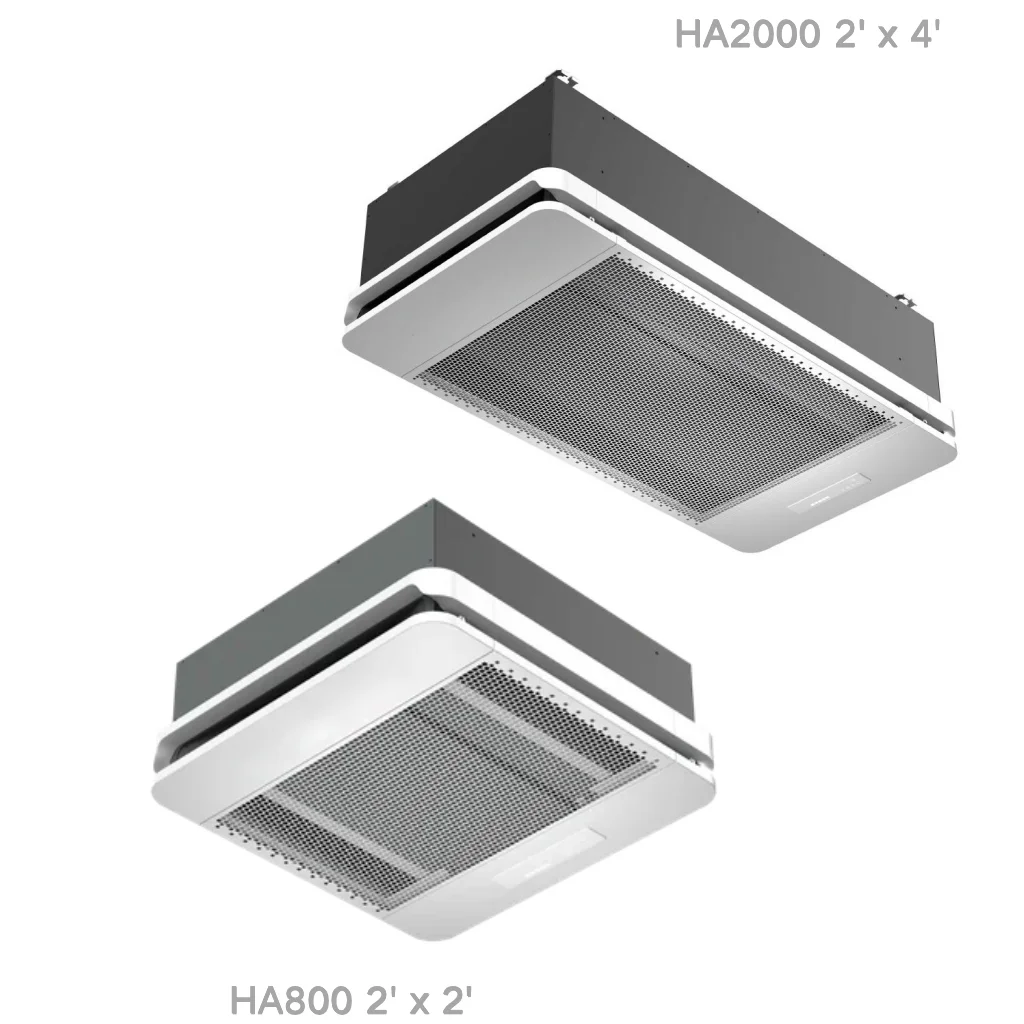

HA2000 and HA800 ceiling-mounted air filtration units with dimensions labeled as 2'x4' and 2'x2', showcasing design and size differences.
HA800 / HA2000
Up to 1176 CFM
H13/H14 HEPA
Commercial Ceiling Mount
تصنيع المعدات الأصلية/التصنيع حسب الطلب

What is a ceiling-mounted air purifier?

A ceiling-mounted air purifier is a fixed commercial air-cleaning system installed above occupied floor space. It draws room air upward through high-efficiency particle and gas-phase filtration before returning clean air to the room. This architecture preserves floor space, prevents tampering, and supports continuous operation in high-traffic commercial environments.

BEST SUITED FOR:
المدارس
المكاتب
Clinics
Hospitality
Commercial Buildings
Which ceiling air purifier platform should I choose?

HA800

For standard classrooms, offices and smaller commercial zones

وحدة تكييف هواء عصرية مثبتة في السقف بتصميم أنيق وعناصر تحكم رقمية.
CADR
430 CFM (730 m³/h)
NOISE
22.5–47.5 dBA
DIMENSIONS
24" x 24" x 14"
FILTER
H13 / H14 HEPA or Customized Filtration Solution
المستشعر
مستشعر القرب
التحكم
Touch button+Remote control
TYPICAL APPLICATION
Single-zone or distributed deployment
Optional Function
UVC lamp, PM2.5 sensor, CO2 sensor, WIFI (Tuya),Activated carbon filter

HA2000

For larger commercial spaces or projects requiring substantially higher airflow

ceiling air purifier ha2000
CADR
1176 CFM (2000 m³/h)
NOISE
38.0–58.5 dBA
DIMENSIONS
48" x 24" x 18"
FILTER
H13 / H14 HEPA or Customized Filtration Solution
المستشعر
مستشعر القرب
التحكم
Touch button+Remote control
TYPICAL APPLICATION
High-capacity centralized deployment
Optional Function
UVC lamp, PM2.5 sensor, CO2 sensor, WIFI (Tuya),Activated carbon filter
430 CFM
MAX AIRFLOW (HA800)
22.5–47.5 dBA
MEASURED ACOUSTIC RANGE
H13 HEPA
PARTICLE FILTRATION
24/7
COMMERCIAL OPERATION

How loud is the ceiling-mounted air purifier?

Designed specifically for occupied commercial environments, the platform balances high clean air delivery rates with minimal acoustic intrusion.

MEASURED ACOUSTIC PROFILE
Bar length is a visual scale; the measured airflow and acoustic values are shown in each label.
ENGINEERING TEST CONTEXT
MODEL
HA800 standard unit
FILTER CONFIGURATION
H13 HEPA (standard resistance)
TEST DISTANCE
1.0m below outlet
TEST ENVIRONMENT
Hemi-anechoic chamber
DATA TYPE: HisoAir internal engineering validation
DATE: 2026-01-15

Filtration Engineering

Scientific capture mechanisms for complex airborne particles and gaseous pollutants.

How does the ceiling purifier remove airborne particles?

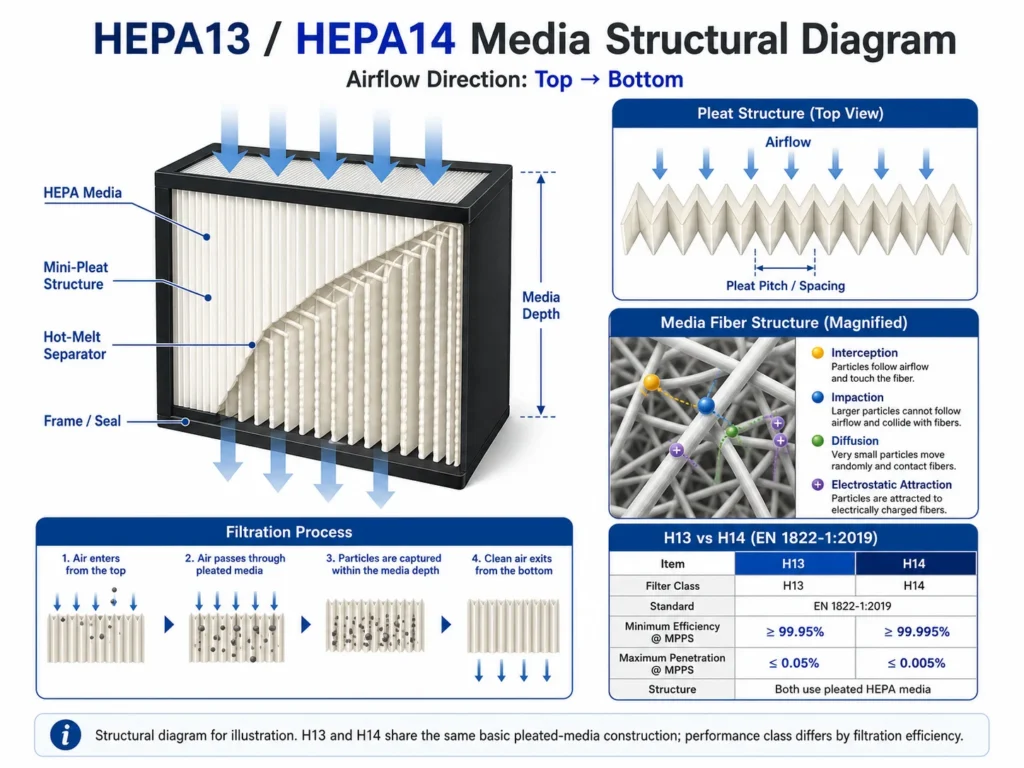

Diagram illustrating the structure and filtration process of HEPA13 and HEPA14 filters, including pleated media, airflow direction, and magnified fiber structure.
01
الفلتر المسبق
Captures large dust and lint, protecting the lifespan of the primary HEPA filter.
02
H13 HEPA
Guaranteed ≥99.95% capture efficiency at the most penetrating particle size (MPPS) of 0.3μm.
03
التقاط الجسيمات
Clean air is continuously discharged back into the room environment.
EN 1822 Fractional Efficiency

How does activated carbon help reduce VOCs and odors?

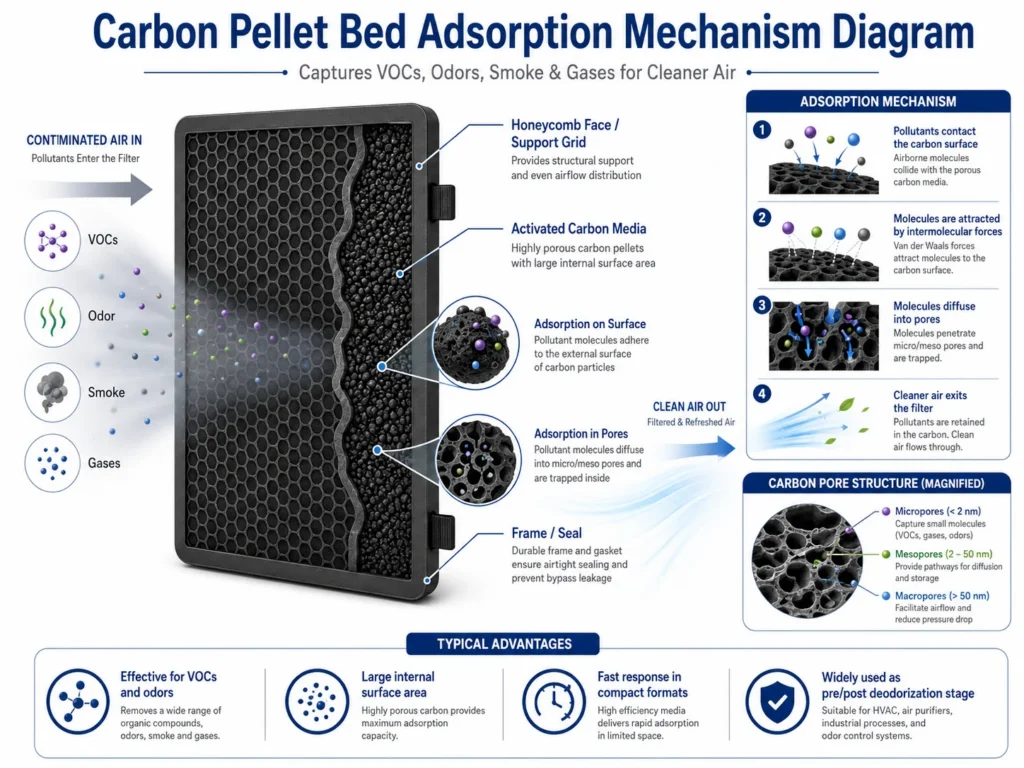

Diagram illustrating the carbon pellet bed adsorption mechanism, showing how pollutants like VOCs, odors, smoke, and gases are captured by activated carbon media to filter and purify air.
01
Carbon Media
High-density pelletized carbon maximizes the molecular surface area.
02
Gas Adsorption
Chemicals, odors, and VOCs are physically adsorbed into the carbon pores.
03
Application Loading
Bed thickness is tuned to balance saturation lifespan with pressure-drop limits.
Gas-Phase Filtration Engineering

Why does the ceiling air purifier use a dual-fan architecture?

Dual Fan
More uniform airflow across filter media
Lower fan loading per individual fan
High airflow delivery without excessive RPM
Optimized airflow-to-acoustic balance
MEASURED OUTCOME
Up to 430 CFM at 47.5 dBA
in the tested HA800 configuration
ENGINEERING SCHEMATIC

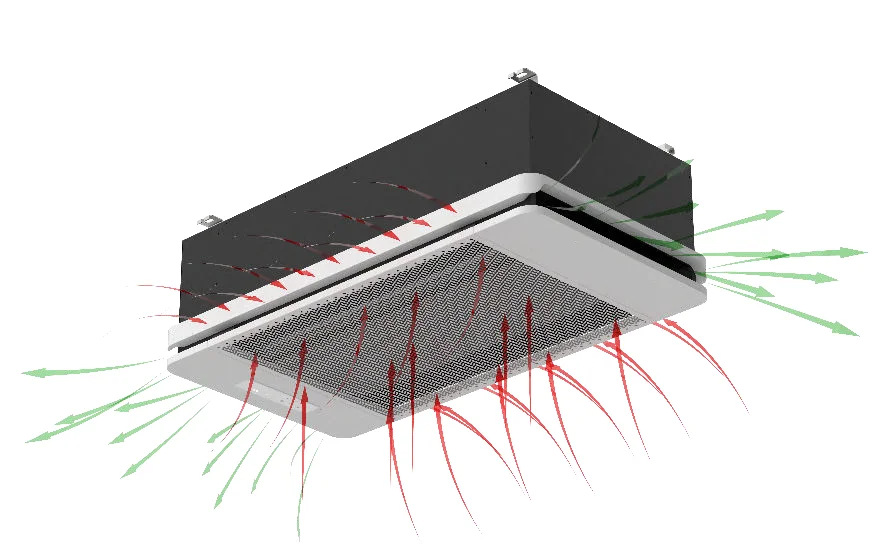

Ceiling-mounted air purifier showing airflow direction with red and green arrows indicating intake and output.
Room Air → Filter → Dual Fan → Clean Air Discharge
DOCUMENT: AIRFLOW DYNAMICS VALIDATION

Enhanced Air Purification Technologies

Tackling viruses, bacteria, gases with tech & filtration.

low noise

تقنية إلغاء الديسيبل™ إلغاء الديسيبل

Most purifiers trade power for noise. Our proprietary Decibel Cancellation™ Technology changes that — delivering powerful purification in near silence. Designed through rigorous testing of materials, airflow, and fan positioning, it creates a calm and comfortable environment wherever it’s installed.

  • Ideal for restful sleep & deep focus

  • Perfect for offices, hotels, and classrooms

  • Advanced engineering for peace of mind

احصل على عرض أسعار فوري

تصميم مجاري هواء صامتة

يضاعف تصميمنا المتطور لمدخل الهواء ثنائي الجانب ومخرج الهواء أحادي الجانب من حجم الهواء، مما يضمن أداءً عاليًا لمعدل دوران الهواء المضغوط حتى عند سرعات المحرك المنخفضة.

مواد الحد من الضوضاء

نحن نستخدم مواد ممتازة للحد من الضوضاء حول المحرك، مما يقلل من الضوضاء بمقدار 10-15 ديسيبل مقارنةً بأجهزة تنقية الهواء الأخرى.

تكنولوجيا توربينات الرياح

يتميز منفاخ الطرد المركزي المائل إلى الأمام الخاص بنا بأنه أصغر حجماً وأكثر هدوءاً. يعمل بسرعات معتدلة، مما يضمن ضوضاء منخفضة وكفاءة عالية.

فلتر HEPA حقيقي

تضمن تقنية الضغط التفاضلي المنخفض للغاية (D/P) التي نقدّمها تدفّق هواء فائق من دون المساس بالكفاءة. يتم نسج النوى الذائبة بشكل معقد لالتقاط جسيمات صغيرة تصل إلى 0.3 ميكرومتر، مما يوفر ترشيحًا استثنائيًا.

hepa
نوع المرشح الكفاءة د/ف (أخرى) د/ف (HISO)
H11 95% 15 باسكال 8 Pa / 11 Pa
H12 99.50% 25 باسكال 13 Pa / 18 Pa
H13 99.97% 30 باسكال 22 Pa / 25 Pa
H14 99.99% 45 باسكال 30 Pa / 35 Pa
Standard: EN 143, NaCl, 0.3 μm, @ 5.33 cm/s
اتصل بنا

Microbial Treatment Technology

microbial treatment solutions 3اتصل بنا
microbial treatment solutions 1
الفلتر

Modular Composite Filter

Pre-filter:
Captures large particles like dust, lint, pet hair, and fibers, helping extend the life of the main filters.

HEPA filter:
Effectively traps fine airborne particles and common allergens, helping to improve overall air quality.

Activated carbon:
Absorbs odors, harmful gases, VOCs, smoke, and household fumes—ensuring a fresher indoor environment.

احصل على عرض أسعار

High Dust Holding Capacity Technology

Electrostatic Adsorption
The filter material is given an electrostatic charge through special processes, which enables it to attract and hold airborne particles through electrostatic forces.

Physical Interception
The filter material has small pores and tightly bound fibers, forming a dense physical barrier that prevents particles from passing through.

High Dust Holding Capacity
Principle: The structure of the filter material is optimized to increase the surface area of the fibers and the depth of the pores, allowing it to hold more dust.

High Efficiency and Longevity
Principle: The combination of electrostatic adsorption and physical interception ensures stable performance of the filter material, maintaining high-efficiency filtration over the long term.

اتصل بنا

Multiple Integrated Sensors Technology

Optional integrated sensors for customized air quality monitoring.

sensors (2)

Advanced PM2.5 Sensor

It is capable of continuously monitoring indoor air quality. In auto mode, the purifier intelligently adjusts fan speed based on PM2.5 levels, ensuring optimal purification performance.

احصل على عرض أسعار فوري

ap ht m1549rs

Precision Temperature & Humidity Sensor

Optional temperature & humidity sensor offering accurate, real-time environmental monitoring with wide range, fast response, and robust performance in demanding conditions.

احصل على عرض أسعار فوري

High-Precision Radar Sensor

Advanced radar technology for reliable detection of objects, motion, and environment—ideal for automotive, industrial, and security applications.

احصل على عرض أسعار فوري

تقنية مستشعر الضوضاء

An embedded acoustic sensor constantly listens to both the purifier’s airflow and the room’s ambience. When the household settles down—for instance at bedtime—the fan automatically drifts into whisper-quiet mode, so fresh air keeps moving while you hardly notice a sound, creates a calmer, healthier living space where you can sleep deeper, work happier, and simply enjoy the peace.

احصل على عرض أسعار فوري

Light Sensor™ Technology

تعمل أجهزة الاستشعار لدينا على ضبط السطوع تلقائيًا للحصول على إضاءة مثالية، مما يعزز الراحة وكفاءة الطاقة. مثالية لخلق أجواء مثالية وضمان بيئة مضاءة بشكل جيد ومتكيفة تناسب احتياجاتك في أي وقت من النهار أو الليل.

احصل على عرض أسعار فوري

Wi-Fi Remote Control & Real-time Monitoring

Through the Tuya application, clients can remotely control the device and monitor air quality in real-time anytime, anywhere.

اتصل بنا
ha100d wifi (1)
matter

Matter™ Universal Smart-Home Integration

HisoAir also supports the Matter™ universal smart home integration protocol, meaning devices can easily connect to multiple platforms like Apple HomeKit, Google Home, Amazon Alexa for unified control.

اتصل بنا

Thread Ultra-Reliable Mesh Network

Thread ultra-reliable mesh networking technology is also available as an optional configuration, providing low-power, self-healing connectivity to ensure uninterrupted performance and extended range and response time.

اتصل بنا
thread

Certifications & Compliance Standards

جهاز تنقية هواء عالي الجودة يمكنك الاعتماد عليه

Our Key Testing Capabilities

  • اختبار CADR: يقيس كفاءة إزالة الملوثات.
  • Noise Testing: Ensures ultra-quiet operation, as low as 32dB(A).
  • اختبار متانة الفلتر: التحقق من فلاتر HEPA طويلة الأمد.
  • معايرة مستشعر الهواء: يضمن الحصول على قراءات دقيقة لجودة الهواء.
  • اختبار السلامة والموثوقية: التحقق من القدرة على التكيف البيئي والسلامة الكهربائية.

كما نقدم حلولاً مخصصة لتعزيز كفاءة الترشيح وعمره الافتراضي، مصممة خصيصاً لتلبية احتياجاتك.

فني يجري اختبار جودة فلتر الهواء في المختبر.

Reliable Testing & Quality Control

Every air purifier undergoes strict testing in our CNAS-accredited laboratory, including CADR performance, noise level, and durability assessments. We ensure consistent, high-quality output before any unit leaves the factory.

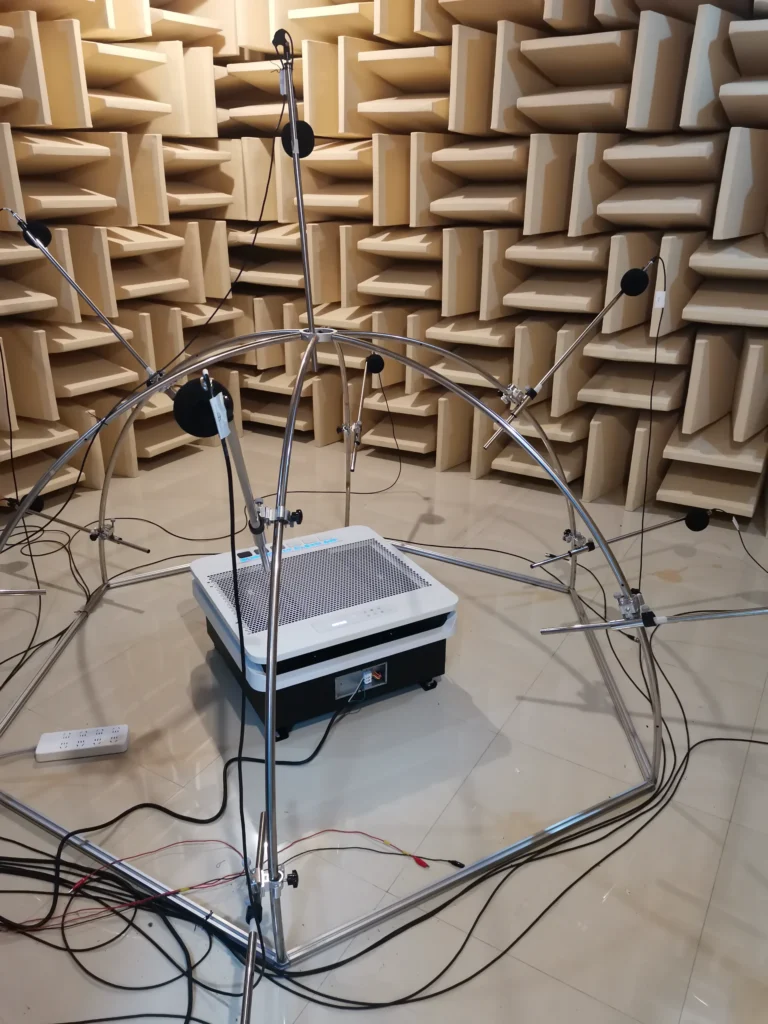

غرفة اختبار الضوضاء

Certified to International Standards

Our air purifiers are fully certified by ETL and FCC, ensuring they meet international standards for electrical safety and electromagnetic compatibility—trusted for both residential and commercial use.


تحدث إلى خبيرنا
ha200 ha400 ha180 ha380 certifications
energy star
شعار شهادة UL
إيتل
شعار لجنة الاتصالات الفيدرالية
شعار ce
doe
aham
ca65
شعار مجلس اعتماد الصحة العامة (PHAB)
شعار rohs
الشعار
شعار Ashare - مزود حلول جودة الهواء الاحترافية

Why Choose Us

اختر HisoAir لخبرة لا مثيل لها في مجال تنقية الهواء، حيث التزامنا ب "أقصى قدر من التنقية بأقل قدر من الضوضاء" يفي بالمعايير الصارمة للعلامات التجارية الرائدة في العالم وشركات فورتشن 500، بما في ذلك: هنري سينج، وجي بي مورغان، وأفلاك، وبلو إير.

الشراكات المرموقة: تحظى شركة HisoAir بثقة رواد الصناعة مثل هنري سينغ، وجي بي مورغان، وأفلاك، وبلو إير وهي مزود من الدرجة الأولى لحلول تنقية الهواء، وتلبي المتطلبات العالية للعلامات التجارية العالمية.

تقنية إلغاء الديسيبل™ إلغاء الديسيبل: توفر تقنيتنا الفريدة من نوعها تنقية هواء هادئة وعالية الأداء، مما يجعل أجهزة تنقية الهواء لدينا مثالية للبيئات الحساسة للضوضاء.

حلول مصممة خصيصًا وعالية الأداء: نحن نقدم أجهزة تنقية هواء ممتازة مصممة خصيصاً لتلبية احتياجات كل عميل، مما يضمن جودة هواء فائقة وتتجاوز توقعات العملاء.

Founders of HisoAir

تواصل مع الخبراء لتحسين جودة الهواء الداخلي والحفاظ عليه.
alween lee hisoair founder
Alwen Lee
Founder & CEO

As the founder of HisoAir, I am deeply passionate about improving indoor air quality and the well-being of our environment.

With a commitment to clean air and healthy living spaces, I am dedicated to developing innovative solutions that make a significant difference.

My expertise lies in social media marketing and global brand distribution, allowing me to bring our air quality products to a wider audience.

evelyn
Evelyn Wen
Co-Founder

With over 16 years of experience as a Product and Quality Engineer in Apple's supply chain, Evelyn Wen is a dedicated expert in designing high-quality products that improve indoor air quality.

She is passionate about user experience and committed to creating innovative solutions that enhance the well-being of customers through cleaner, healthier living environments.

mr wu
Mr. Wu
Co-Founder

With over 20 years of experience in air treatment, he is an expert in product design and manufacturing. He has dedicated his career to developing advanced solutions for improving indoor air quality.

Passionate about innovation, he leads the design and production of high-performance air purification systems that create healthier, more comfortable living environments.
