革新的な空気品質ソリューション
洗練されたデザインとデジタル制御を備えた、モダンな天井埋込型エアコン。

天井空気清浄機 HA800

カテゴリー 天井型空気清浄機
  • パワフルで静か:HEPAフィルターを搭載し、効率的な浄化と超静音性を両立。
  • コンパクトなデザイン、広いカバー範囲: Covers spaces of 50-80m² with four air volume options to suit various needs.
  • レーダー・センサー内蔵:部屋の稼働率をリアルタイムに検知し、最適なパフォーマンスとエネルギー効率を実現するために自動的に運転を調整します。
  • 効率的な空気循環:スムーズなエアフローを促進し、会議室やオフィスのような広いスペースにクリーンな空気を均一に行き渡らせます。
  • スマート・エネルギー管理:優れた空気品質を維持しながらエネルギーを節約します。
見積依頼

商品説明

CEILING-MOUNTED AIR PURIFICATION

High-Airflow Purification Without Taking Up Floor Space

The HA800 is a commercial ceiling-mounted air purifier designed for offices, classrooms, meeting rooms and other occupied spaces where floor space, airflow and acoustic performance matter.

Its metal ceiling-integrated design combines up to 700 m³/h (414 CFM) airflow with H13 HEPA filtration and four operating levels, providing a fixed air-purification solution without adding freestanding equipment to the room.

700 m³/h Maximum Airflow
22–47 dB Specified Noise Range*
H13 HEPA Standard Filtration
50–80 m² Recommended Area*

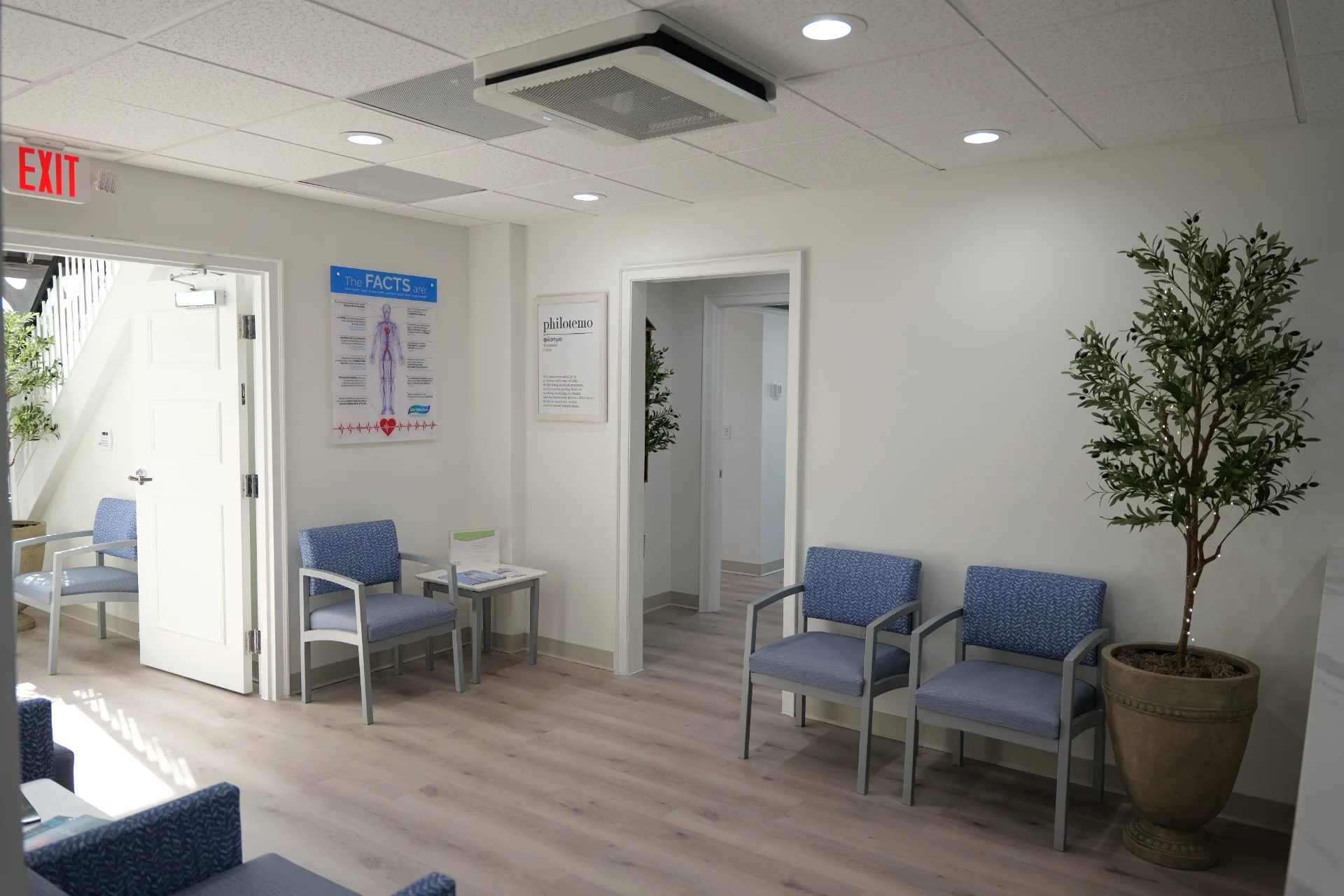

HA800 ceiling-mounted air purifier installed in a commercial space
HA800 ceiling air purifier airflow design
AIRFLOW & ACOUSTICS

Four Airflow Levels for Different Commercial Environments

The HA800 provides four airflow settings from 160 to 700 m³/h. This allows airflow output to be matched to different room conditions while maintaining a specified acoustic range of 22–47 dB.

160 m³/h 22 dB*
280 m³/h 27 dB*
460 m³/h 38 dB*
700 m³/h 47 dB*
Explore Ceiling Air Purifier Engineering →
SPACE-SAVING DESIGN

Designed for Permanent Ceiling Installation

The HA800 uses a durable metal enclosure with a 490 × 490 mm footprint designed for ceiling-mounted installation. Moving the purification system above the occupied space helps preserve usable floor and wall area while maintaining a clean, integrated appearance.

  • Fixed ceiling-mounted configuration
  • Metal construction for commercial applications
  • Suitable for offices, classrooms and meeting spaces
  • Touch-button and remote-control operation
HA800 commercial ceiling installation and space-saving design
HA800 built-in proximity sensor and control detail
CONFIGURABLE PLATFORM

Built-In Proximity Sensor with Optional Smart Upgrades

The standard HA800 configuration includes a 近接センサー, touch controls and remote control. For projects requiring additional indoor-air-quality monitoring, filtration or connectivity, the platform can be configured with selected optional functions.

PM2.5 Sensor CO₂ Sensor 活性炭 Wi-Fi / Tuya UVC

Optional functions depend on the final product configuration and project requirements.

* Performance figures shown above should be maintained against the latest approved HA800 product specification and applicable test data.

仕様

電圧
110V/ 220V、50-60Hz
パワー
75W
素材
メタル
ノイズ
22-47 dB
ディスプレイ
LEDディスプレイ
センサー
近接センサー
マシンサイズ
636*636*255mm
アプリケーションエリア
50-80m²
Gear 1 CADR - Noise
160m³/h (94 CFM)-22dB
Gear 2 CADR - Noise
280m³/h (167 CFM)-27dB
Gear 3 CADR - Noise
460m³/h (274 CFM)-38dB
Gear 4 CADR - Noise
700m³/h (414 CFM)-47dB
フィルター
プレフィルター+H13 HEPAフィルター
フィルターサイズ
395mm*230mm*80mm
フィルター量
2個
HEPAフィルター面積
7.2m²
コントロールする：
タッチボタン＋リモコン
Function for option
UVC lamp, PM2.5 sensor, CO2 sensor, WIFI (Tuya),Activated carbon filter

関連文書ダウンロード

ダウンロードはできません。

当社の空気清浄機を選ぶ理由

High-Performance Air Purification
Advanced Filtration Options
99.9%バクテリア
除去率
高CADR
(クリーンエア供給率）
H13/H14 HEPA Filtration Options
Optional 270–280 nm UVC Module
H14 H13 extended filter life
lifespan HEPA filters
Third-Party Tested Filtration Performance

中国トップ3 OEM/ODM 空気清浄機メーカー

数十年にわたり、ブランド空気清浄機のプライベート・ブランドを展開

HisoAirでは、HisoAirの空気清浄機のデザインと仕様をご検討いただき、ご同意いただいたお客様を対象に、空気清浄機のプライベートラベルサービスをご提供しています。契約締結後、選定された製品にお客様のお名前をラベルとしてお入れします。

空気清浄機のOEM

HisoAirは、製品に必要な仕様をお持ちのパートナー様に、空気清浄機のOEMサービスを提供しています。研究、設計、エンジニアリング、モックアップまたは改造、テスト、そしてお客様の最終設計に基づく量産を行います。

赤で描かれた3Mのロゴ。
キャリアロゴ
ロゴ
アレンロゴ - 信頼の空気清浄機
tclロゴ 0
ハネウェルのロゴ - 空気清浄とろ過ソリューションのリーダー
LGロゴ - スマート家電と空気清浄ソリューションのイノベーター
フィリップスのロゴ - 健康技術と空気清浄ソリューションのリーダー

有名グローバルブランドからの信頼

20年以上の専門知識を持つ当社は、世界で最も有名なブランドのニーズにシームレスに統合するIAQソリューションの提供を専門としています。お客様の市場に合わせた卓越したパフォーマンスを実現するために、当社とパートナーシップを結んでください。

お客様の声

"グーグルからhisoairのウェブサイトを見つけ、正直なところ、最初は信頼できるかどうか不安でしたが、私のプロジェクト要件を1ヶ月半で完成させてくれました。また、プロジェクトでCO2センサーの緊急追加が必要になった際には、1週間以内に新しいサンプルを完成させてくれました。
TMS 1
トーマス
ドイツの政府系サプライヤー
"HisoAirの空気清浄機を購入しました。この7年間、HisoAirのAlwenと一緒に仕事をしていますが、彼はとても信頼できる人で、とても効率的でプロフェッショナルです。
お客様の声 2
ランジット・バーラ
インドからの医療製品輸入業者
"私たちは15年以上、民間機関や民間セクターと仕事をしてきた経験を持つ会社です。私たちは3年間、ヒソとコラボレーションをしてきましたが、ヒソが私たちに提供してくれた仕事には本当に感謝しています。とのコラボレーションに感謝しています。 チェリーとリーさん "
お客様の声
ヘリナ
ルーマニアの病院と政府系サプライヤー

当社の空気ろ過ソリューションの専門知識を信頼するグローバルリーダーの一員になりませんか。

あなたの問い合わせは私たちにとって重要です。お客様の情報は常に安全に保護されています。
ヒソとは3年間コラボレーションを続けており、ヒソが提供してくれた作品には本当に感謝している。チェリーと李さんとのコラボレーションに感謝しています。
TMS 1
トーマス
ドイツの政府系サプライヤー
Contaminant Engineering•3 min read

PFAS Water Filtration Technologies Explained: Carbon, Resin & RO

Key Takeaway:

PFAS reduction depends on the specific compounds present, treatment media, contact time, water chemistry, and system design. Activated carbon, ion exchange, and Reverse Osmosis address PFAS through different mechanisms.

PFAS are a large family of persistent fluorinated compounds that can occur in drinking-water supplies. Their treatment behavior varies significantly by molecular structure, chain length, functional group, concentration, and the chemistry of the source water.

Granular Activated Carbon (GAC) removes PFAS primarily through adsorption. It is generally more effective for many longer-chain PFAS, while shorter-chain compounds tend to break through more quickly. Carbon performance depends on media properties, Empty Bed Contact Time (EBCT), competing organic matter, loading, and replacement frequency.

Ion-exchange resins use charged functional sites to capture many PFAS compounds. Properly selected anion-exchange media can provide high capacity and may perform better than conventional activated carbon for some shorter-chain PFAS, although performance still depends on water chemistry and competing ions.

Reverse Osmosis (RO) uses membrane separation rather than adsorption. Properly designed RO systems can provide broad reduction across many PFAS compounds as well as dissolved salts and other contaminants. Unlike carbon or resin, however, RO also produces a concentrate stream that must be managed.

No single technology should be selected from a PFAS label alone. System design should consider which PFAS compounds are present, their concentrations, required reduction targets, flow rate, media life, and the applicable third-party certification or validation requirements.

HisoAir Water Technical Series
Product Discovery•3 min read

How to Choose an Under-Sink Water Purifier for Modern Kitchens

Key Takeaway:

Match the treatment technology to your water quality first, then evaluate cabinet space, faucet configuration, flow rate, drain and power requirements, and filter replacement needs.

Choosing an under-sink water purifier starts with water chemistry. Carbon filtration is well suited to chlorine, taste, odor, and many organic contaminants, while Reverse Osmosis is more appropriate when dissolved salts, fluoride, nitrates, or broader dissolved contaminants need to be reduced.

For compact kitchens, tankless RO systems eliminate the conventional storage tank and can significantly reduce the space required under the sink. However, membrane capacity stated in GPD does not directly equal faucet flow. When comparing systems, check the actual dispensing flow rate, inlet-pressure requirement, recovery ratio, and whether a booster pump is required.

Installation architecture also matters. Many RO systems require a drain connection, electrical power, and either a dedicated drinking-water faucet or a compatible multi-function faucet. High-flow carbon systems can often connect directly to the existing cold-water line with a simpler installation, but pressure drop and available faucet flow should still be verified.

RO also removes much of the naturally occurring dissolved mineral content. Where taste or mineral balance is a priority, a post-RO remineralization stage can be added. Filter life should be evaluated by both rated capacity and local water quality rather than replacement time alone.

The right system is therefore not simply the smallest or highest-GPD model. It is the configuration that matches the target contaminants, available cabinet space, desired faucet setup, peak dispensing demand, and maintenance expectations.

HisoAir Water Technical Series
Water Quality•2 min read

What Does TDS Mean in Drinking Water? Measurement vs Contaminant Reality

Key Takeaway:

A TDS meter estimates the overall concentration of dissolved ionic substances from electrical conductivity. It cannot identify specific contaminants or determine whether water is chemically safe.

Total Dissolved Solids (TDS) refers to the combined concentration of dissolved substances in water. Most handheld TDS meters do not measure TDS directly. Instead, they measure electrical conductivity (EC) and convert that reading into an estimated parts-per-million (ppm) value.

This means a TDS reading can indicate how much dissolved ionic material is present, but not what that material actually is. Calcium, magnesium, sodium, nitrates, and other dissolved ions can all contribute to conductivity, yet a simple TDS meter cannot distinguish between them.

TDS meters are also not suitable for detecting trace contaminants such as PFAS, many VOCs, pesticides, pharmaceuticals, or disinfection byproducts. These substances may be present at concentrations far below the level needed to noticeably change electrical conductivity.

A low TDS reading therefore does not guarantee safe drinking water, and a higher TDS reading does not automatically indicate contamination. Water-treatment decisions should be based on laboratory testing for specific contaminants of concern rather than TDS alone.

HisoAir Water Technical Series
Technology Selection•2 min read

RO vs UF Water Filtration: Understanding Pore Sizes & Dissolved Minerals

Key Takeaway:

Ultrafiltration can reduce bacteria, turbidity, and suspended particles while retaining most naturally occurring dissolved minerals. Reverse Osmosis provides much broader reduction of dissolved salts and smaller contaminants.

Ultrafiltration (UF) typically uses hollow-fiber membranes with pore sizes in the approximate 0.01–0.1 micron range. These membranes physically retain turbidity, suspended solids, colloids, and many microorganisms while allowing dissolved minerals and salts to remain in the water.

Reverse Osmosis (RO) operates at a much finer separation level. Unlike UF, RO can substantially reduce dissolved ions such as sodium, calcium, fluoride, nitrates, and other contributors to total dissolved solids (TDS). This makes RO more suitable when dissolved-salt reduction is a primary treatment objective.

UF generally requires less system pressure and produces little or no continuous concentrate stream in many point-of-use configurations. RO typically requires greater pressure and produces a reject-water stream, but delivers broader contaminant reduction.

For water with acceptable TDS and mineral content, UF can be a simpler mineral-retaining treatment option. Where dissolved salts, fluoride, nitrates, or broader dissolved contaminants are a concern, RO is generally the more appropriate technology.

HisoAir Water Technical Series
Technology Selection•4 min read

Carbon Block vs Reverse Osmosis: Which Fits Your Need?

Key Takeaway:

Choose RO for dissolved inorganic salts and heavy metals; choose Carbon Block for chemical taste/odor, no wastewater, and high line-pressure flow.

Reverse Osmosis (RO) and Carbon Block filtration represent two fundamentally different treatment methods: membrane separation and adsorption. Understanding these differences helps determine which technology is better suited to a specific water-quality requirement.

Reverse Osmosis uses a semi-permeable membrane with pore sizes of approximately 0.0001 microns. It can significantly reduce dissolved inorganic contaminants such as TDS, fluoride, nitrates, and certain heavy metals. Because water must be forced through the membrane, RO systems require sufficient pressure or a booster pump and generate a concentrated wastewater stream.

Carbon Block filtration relies primarily on adsorption through compressed activated carbon, commonly with nominal pore sizes around 0.5–5 microns. It is highly effective for chlorine, chloramines, VOCs, taste, and odor, while allowing substantially higher direct-flow rates without producing wastewater.

From an operating perspective, Carbon Block systems are generally simpler, require less energy, and avoid the water loss associated with RO. RO involves higher system complexity and operating cost, but provides substantially broader reduction of dissolved contaminants that Carbon Block alone cannot address.

HisoAir Water Technical Series
